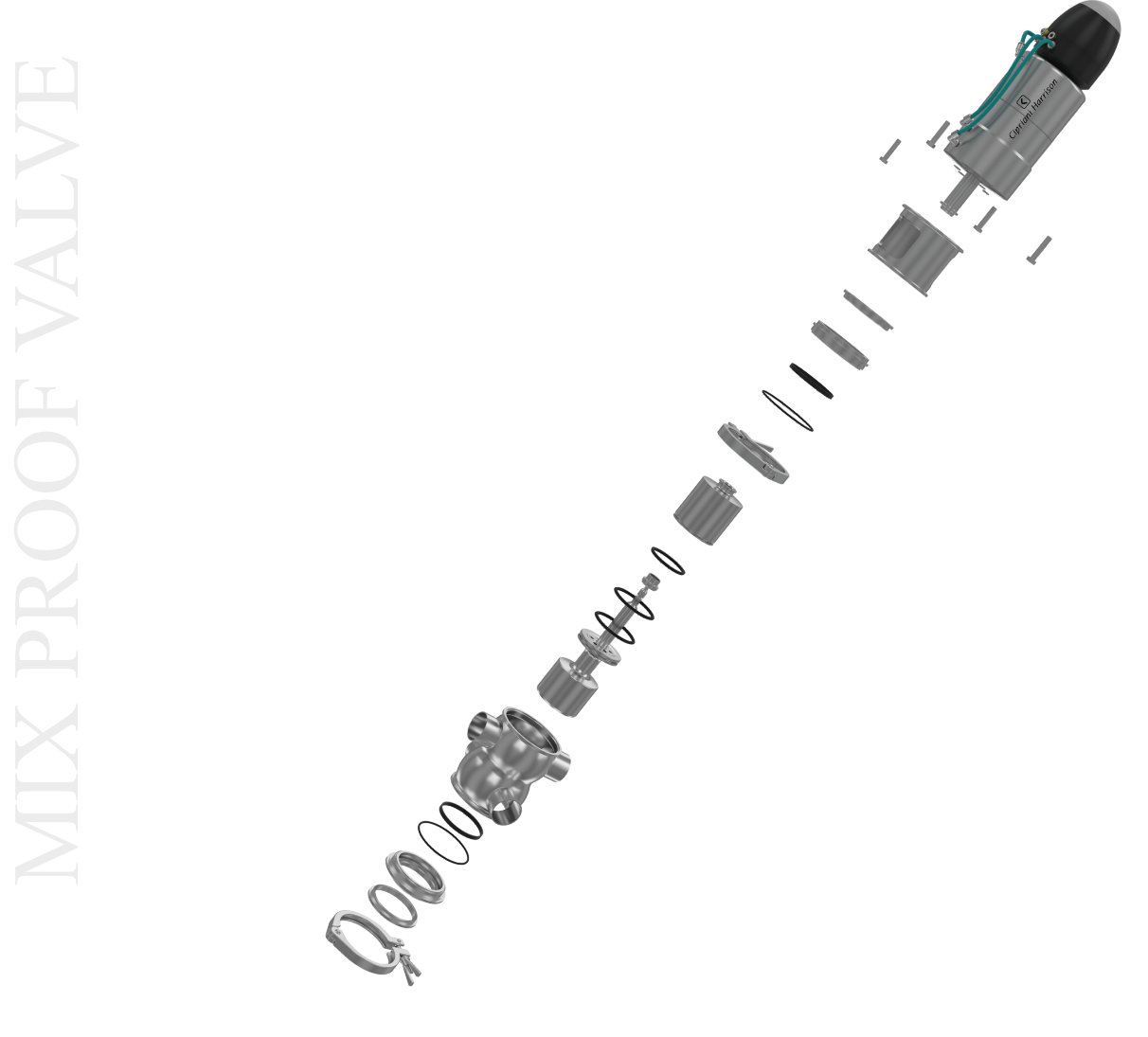

Mix Proof valves are used where simultaneous processes are routed with no risk of cross contamination.
Modern Production process demands simultaneous operation of product and cleaning cycle in order to maximize the productivity of the plant which optimizes the economics of operation of a complex system.
Cipriani Harrison’s Double Seat Mix Proof valve technology guarantees that all the products & cleaning liquids in a modern complex routing system remains separated even in the event of seal failure.
Cipriani Harrison has various different types of Mix Proof valves for different process requirement, all serving the purpose to stop cross continuation and maximizing the reliability & safety.

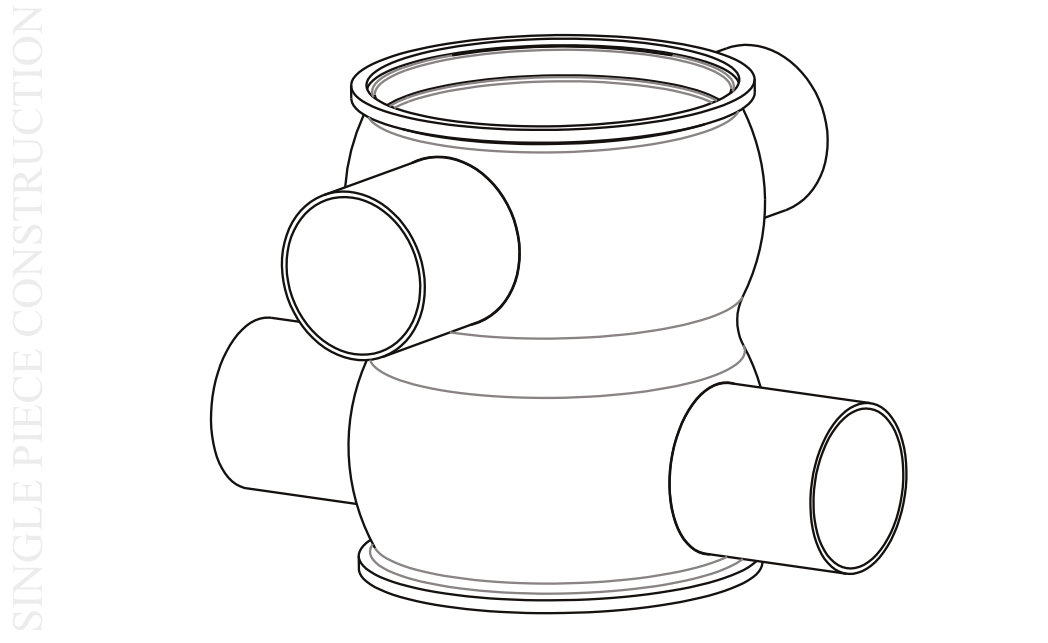

Cipriani Harrison Double Seat Valve are manufactured from a single piece solidbar.
This minimize the number of joints complimenting to a superior level of hygiene.
Cipriani Harrison’s Standard Double Seat Valve is compact in size, thanks to its one piece body construction and a maintenance free sealed actuator. An Engineered and optimized design result in light weight construction, without compromising the functionality or strength of the valve.
The Self draining machined and polished Bodies are machined from higher grades of acid resistance stainless steel.
The spherical shape design of the valve body offers minimum resistance to the flow.
Cipriani Harrison’s Double seat valves are easy to maintain.

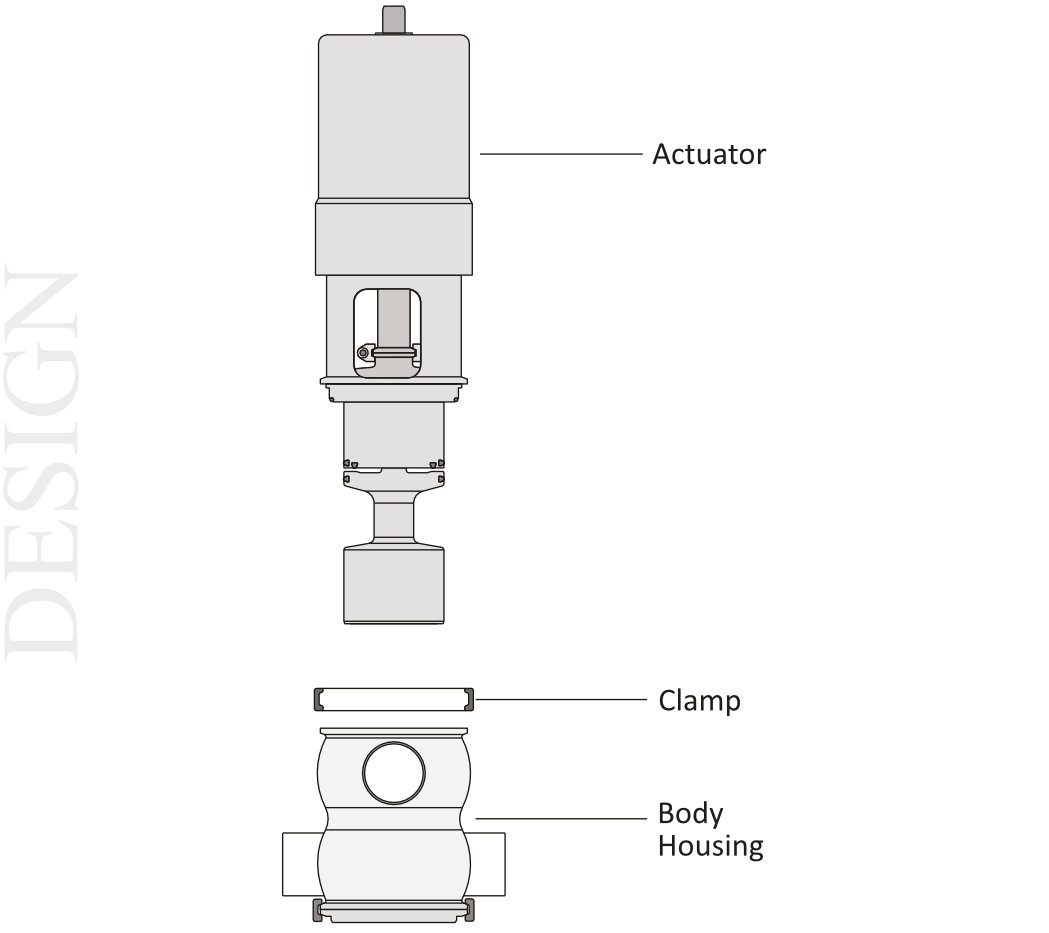

The valve body and yoke are connected by hygienic sanitary clamp enabling easy and quick assembly & disassembly of the valve.
Cipriani Harrison’s Mix Proof Valve are made on modular design platform that can be tailored to fit a specific process requirement, as & when needed.
Cipriani Harrison’s DS-B mix proof valve form the base of the mix proof valve i.e.
it provides the needed reliability & safety of cross contamination.
It is also provided with leak detection without the seat lifting arrangement.
An external seat cleaning feature can be selected to clean the seat externally.
Cipriani Harrison’s DS-SC mix proof valve is a perfect choice for complex process system without intermixing of two non-compatible media.
It is equipped with a built in leak detection port. In addition, it has a balanced plug design ensuring the capability to absorb pressure hammer / shocks.
A seat cleaning arrangement is ensured by providing an actuator capable of individual seat lifting arrangement.
Cipriani Harrison DS-TB Mix Proof valve is designed for tank bottom discharge application.
The DS-TB comes with a built in feature for leak detection with a balanced plug designing ensuring the ability to sustain pressure hammer.
The DS-TB seat can be cleaned during the tank cleaning by lifting the seat during the operation.
It can also have an external cleaning arrangement.
Cipriani Harrison has a unique arrangement DS-BP For future ready process arrangements.
At times There are cases where you need a scalable option, Where additional valves can be installed at a later stage.
DS-BP is a unique concept of Cipriani Harrison, which can be installed in a process system as a transition piece, and at a later stage can be fitted with a valve.
